Spark Gap Tesla Coil (SGTC)

Introduction

A Spark Gap Tesla Coil (SGTC) is a type of Tesla coil that uses a spark gap to create high-voltage, high-frequency alternating current electricity. Invented by Nikola Tesla in the late 19th century, Tesla coils are renowned for their ability to produce impressive electrical discharges, such as sparks and lightning-like arcs.

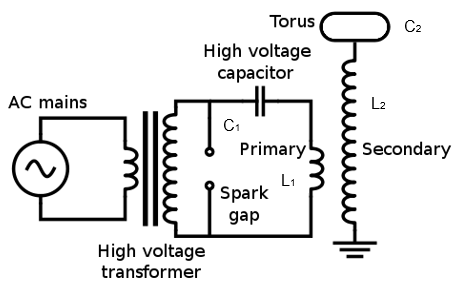

Components

Power Supply

The power supply is typically a high-voltage transformer, such as a neon sign transformer (NST) or an oil burner ignition transformer (OBIT). It steps up the input voltage to a higher level, often in the range of 10’000 to 15’000 volts. For smaller builds, microwave transformers are often used which range around 2’000 volts.

Primary Circuit

• Capacitor (C1): Stores electrical energy.
• Spark Gap (SG): Acts as a switch that discharges the capacitor when the voltage reaches a critical level.
• Primary Coil (L1): A few turns of thick wire or tubing that forms an inductor.

Secondary Circuit

• Secondary Coil (L2): A coil with many turns of fine wire.
• Toroid or Top Load (C2): A conductive toroidal structure at the top of the secondary coil that helps distribute the electric field and produce high-voltage discharges.

Operation

There are 4 main steps how a SGTC operates. These 4 steps are started as soon as the power to the transformer is connected and will repeat as long as power is provided.

Charging the Capacitor

The power supply charges the primary capacitor (C1). The voltage across the capacitor increases until it reaches the breakdown voltage of the spark gap (SG).

Discharge via Spark Gap

When the voltage across the capacitor exceeds the breakdown voltage of the spark gap, the spark gap conducts and creates a conductive path. The capacitor discharges rapidly through the spark gap and the primary coil (L1), creating a high-frequency oscillating current in the primary circuit.

Energy Transfer

The oscillating current in the primary coil induces a corresponding oscillating current in the secondary coil (L2) due to electromagnetic induction. This is because the two coils form a resonant transformer with the primary and secondary circuits tuned to the same resonant frequency.

High Voltage Production

The secondary coil, with its many turns, steps up the voltage to very high levels, typically in the hundreds of thousands to millions of volts. The high-voltage alternating current in the secondary coil creates a high-frequency electric field around the top load (toroid), which ionizes the air and produces visible sparks and corona discharges.

Key Characteristics

• Resonance: Both the primary and secondary circuits are tuned to the same resonant frequency, allowing efficient energy transfer.
• High Voltage, High Frequency: The secondary coil generates very high voltages at high frequencies, often in the range of 100 kHz to several MHz.
• Visible Discharges: The high voltage produces spectacular visual effects, such as long electrical arcs and sparks.

Applications and Uses

• Demonstrations and Education: SGTCs are often used in science museums, educational demonstrations, and entertainment for their impressive visual effects.
• Radio Frequency Experiments: Tesla coils were originally used by Nikola Tesla for wireless power transmission and radio frequency experiments.
• Art and Performance: Modern uses include musical Tesla coils and other artistic performances involving controlled electrical discharges.

Summary

An SGTC is a resonant transformer that uses a spark gap to generate high-frequency, high-voltage electrical discharges. It works by rapidly discharging a capacitor through a primary coil, which induces a high voltage in a secondary coil, producing impressive visual electrical effects. This documentation outlines its components, operation, key characteristics, and applications, providing a comprehensive overview of how SGTCs function and their uses.
